Grand Central Station
Building Overview

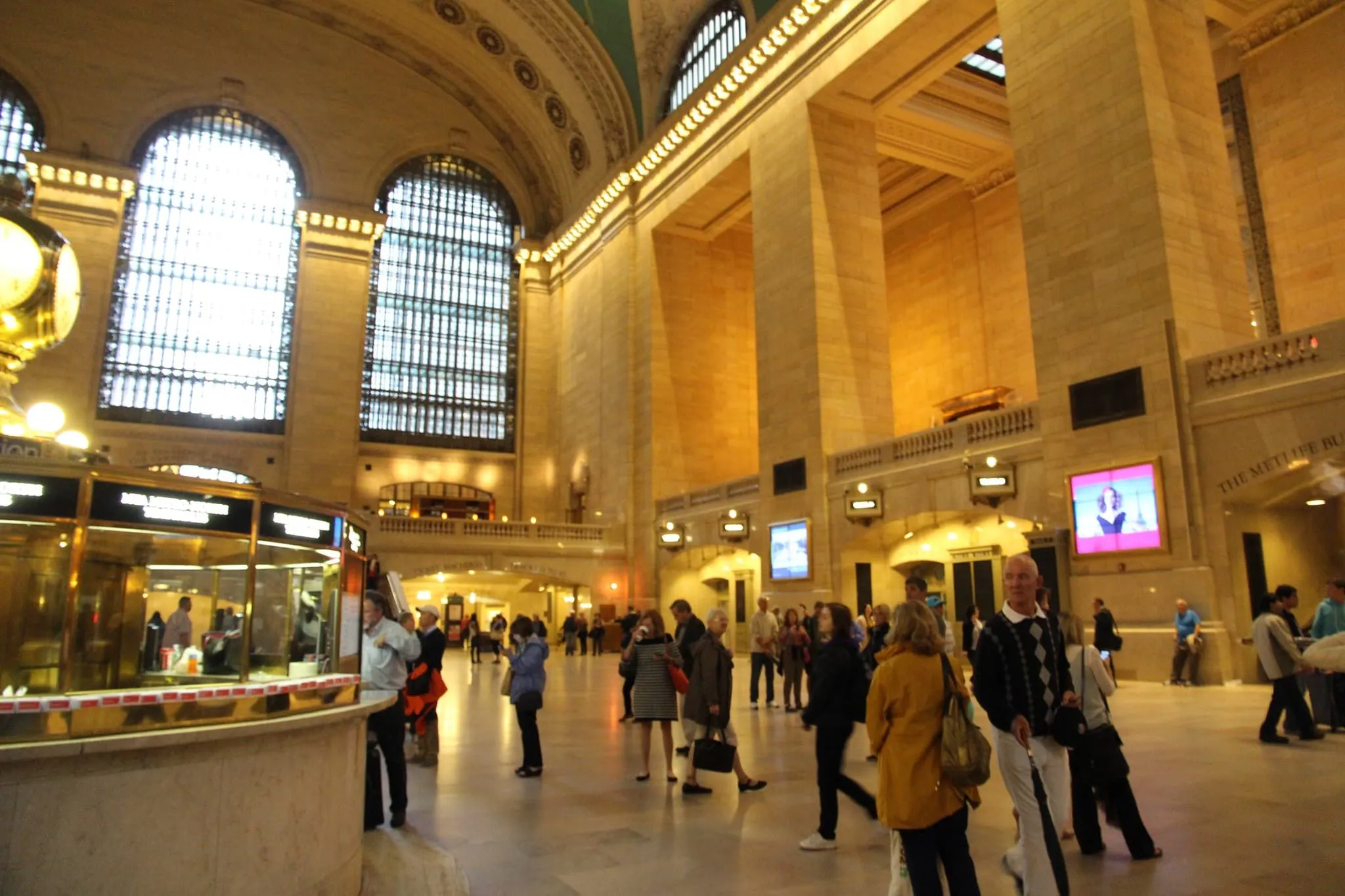

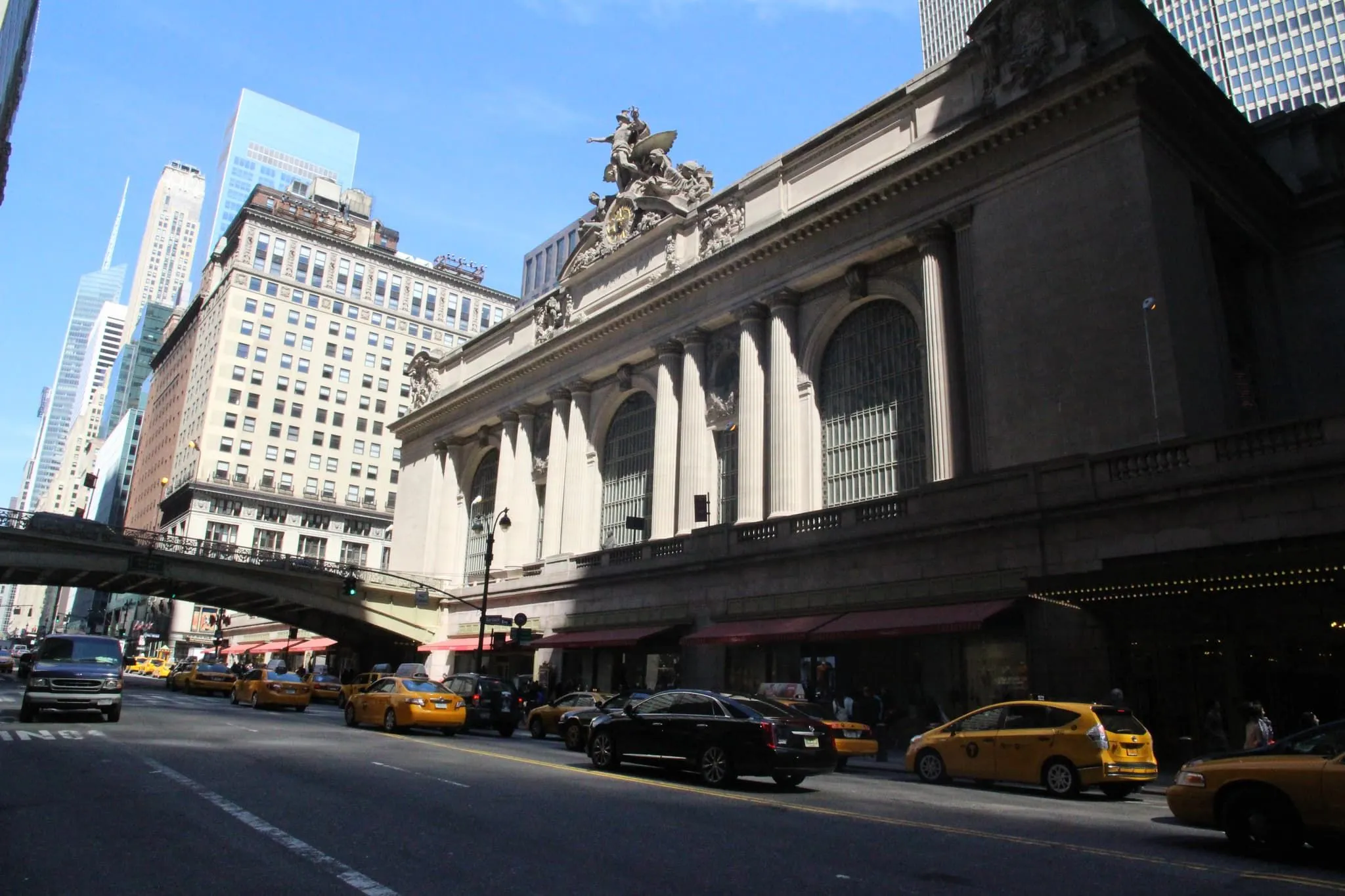

Located at 89 East 42nd Street in Midtown Manhattan, Grand Central Terminal is a world-renowned Beaux-Arts landmark completed in 1913. The terminal is celebrated for its monumental limestone facade, featuring the iconic "Transportation" statuary group (Mercury, Hercules, and Minerva) and the Tiffany glass clock. The interior is defined by the Main Concourse, which spans 275 feet long and 120 feet wide, capped by a vaulted sky ceiling featuring a zodiac mural in gold leaf. Structurally, the terminal is much more than a single building; it is the heart of a massive two-level underground rail complex known as the Grand Central Train Shed. This 75-acre structure supports not only the train tracks but also the Park Avenue Viaduct and the high-rise buildings of Park Avenue above. As a designated New York City Landmark and a National Historic Landmark, any engineering interventions require strict adherence to preservation standards while addressing the extreme loads and environmental exposure of its urban infrastructure.
Project Scope
EOC performed specialized structural analysis to design an atypical construction debris netting and scaffolding system tailored to the unique geometric and operational constraints of the terminal. The primary objective was to engineer a fail-safe containment solution capable of capturing construction debris during renovation work, ensuring zero risk to the active terminal tunnels and critical transit systems operating below. Given the density of public traffic and the continuous operation of the rail lines, standard off-the-shelf netting solutions were insufficient. EOC developed a custom-engineered scaffolding and high-strength netting configuration that accounted for complex dynamic loads and tight clearance requirements. This design provided a robust protective shield, allowing renovation activities to proceed efficiently overhead while maintaining full safety and uninterrupted service for the commuting public below.
Engineering Detail
High-resolution documentation of construction methods, material conditions, and engineering solutions deployed on this project.
